Midi Dress Drafting Procedures

Midi Dress Drafting Procedures

What is a Midi Dress?
Before going to drafting you should know about midi dress. It is also called midi skirt. A midi dress is any dress that falls below the knee and above the ankle, the “mid-calf” hence where it gets it’s name. This is a teen age girls attaire. A set of dress consisting one top and one skirt. A midi dress is any dress that falls below the knee and above the ankle, the “mid-calf” hence where it gets it’s name. In this article I will show drafting procedure of a midi dress.

Suitable fabrics:
Cotton, linen, satin, polyester, silk, crepe.

Fabric required:
3.5 meter. Cloth width-36”.

Measurements:
Full length = 94cm, Body length = 36 cm, Shoulder width = 33cm, Sleeve length = 18cm, Bust = 82cm, Waist = 61cm Seat = 84cm.

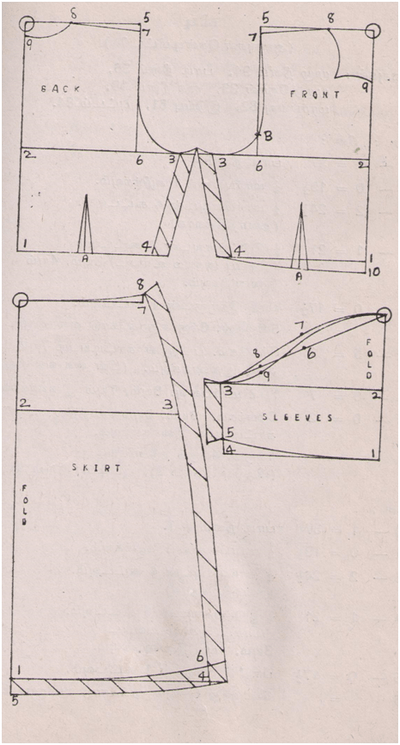

Drafting Details of Midi Dress:

Body (back):

• 1-0 = body length + 2cm,
• 2-0 = 1/4th bust less 1cm
• 3-2 = 1/4 bust + 4cm for loose
• 4-1 = 1/4 waist + 6cm including dart. Join 3 to 4
• 5-0 = 1/2 shoulder width + 1.5cm,
• 6 is squared down from 5.
• 7-5 = down, join 7 to 3 as shown (back armhole)
• 8-0 = 1/12th bust. Join 8 to 7.
• 9-0 = 2 down, shape back neck from 9 to 8 as shown.
• A is center of 1 to 4.

Dart width = 2cm,

Dart length = 9cm.

Front:

• 1-0 = body length+1.5cm.
• 2-0 = ¼ bustless1cm.
• 3-2 = ¼ bust+4cm.for loose.
• 4-1 = ¼ waist+6cm.
• 5-0 = ½ shoulder+1.5cm.
• 6 is squared from 5.
• B-6 = 2.5cm up.
• 7-5 = down. Shape front armhole from7, B, 3.
• 8-0 = 1/12 bust. join 8to7.
• 9-0 = 1/12 bust+1cm.
• 10-12cm down.
• A is the centre of 4 and 10.

Dart width=2cm.

Length=9cm.

Skirt

Skirt length = full length – body length.

1-0 = skirt length +1.5cm.

2-0 = 1/4 seat less4cm.

3-2 = 1/4 seat+4cm.

4-1= 1/4 seat+10cm.

5-1 and 4-6 is bottom turn up. Join 6 to 1 and 4 to 5 as shown.

7-0 = 1/4 waist+4cm.

8-7 = 1cm as per diagram.

Sleeves

1-0 = sleeve length.

2-0 = 1/8thbust+1.5cm.

2-0 = 1/8thbust+1cm.

3-2 = 1/4thbust+5cm.

4-1 = 24.5cm.

5-4 = 2.5cm.up.

6 = is centre point.

7-6 = 2cm.

8 = centre of 6to3.

9-8 = draw the front shape from3,9,0 as shown.
